lfc::SerialPort Class Reference

encapsulate a serial communication port. More...

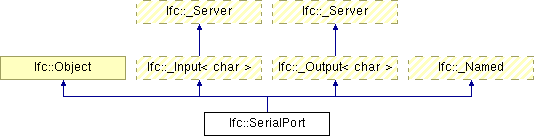

Inheritance diagram for lfc::SerialPort::

List of all members.

Public Types
enum	State { stOpen, stClosed }
	the states in which a SerialPort can be. More...
enum	PurgeFlags { purgeInput = pal::serial::purgeInput, purgeOutput = pal::serial::purgeOutput }
	purge buffer flags. More...
enum	ModemStatusFlags { mstatusDSR = pal::serial::mstatusDSR, mstatusCTS = pal::serial::mstatusCTS, mstatusDCD = pal::serial::mstatusDCD, mstatusRNG = pal::serial::mstatusRNG }
	modem status flags. More...
Public Methods
	SerialPort () throw ()
	construct an closed serial port object. More...
	SerialPort (string name)
	construct an opened serial port object. More...
virtual	~SerialPort () throw ()
virtual char	pop ()
virtual void	resetInput ()
virtual bool	hasMore () const
virtual long	read (char *buffer, long count, bool bWaitAll=true)
virtual void	push (const char &value)
virtual void	resetOutput ()
virtual bool	acceptMore () const
virtual void	flush ()
virtual long	write (const char *buffer, long count, bool bWaitAll=true)
virtual void	open (string name)
	open serial port. More...
virtual void	close ()
	close the port. More...
virtual long	availableCount () const
	return the number of bytes available in the input buffer. More...
virtual void	setup (string settings)
	set serial port settings (baud rate, parity, ...). More...
virtual void	setHardwareFlowControl (bool bEnable)
	enable/disable hardware flow control (CTS/RTS). More...
virtual void	setSoftwareFlowControl (bool bEnable, char Xon=0x11, char Xoff=0x13)
	enable/disable software flow control (XON/XOFF). More...
virtual void	setReadTimeout (long timeout)
	set input timeouts. More...
virtual void	setBlockingRead (bool bBlocking)
	enable/disable blocking read. More...
virtual void	sendBreak ()
	send a 500ms break. More...
virtual DWord	modemStatus () const
	return modem status bits. More...
virtual void	setDTR (bool bEnable)
	enable/disable DTR. More...
virtual void	setRTS (bool bEnable)
	enable/disable RTS. More...
virtual State	state () const throw ()
	return current SerialPort state. More...
Protected Methods
virtual void	testState (string location, int s1, int s2=-1, int s3=-1, int s4=-1) const
Protected Attributes
pal::serial::Handle	m_handle
pal::serial::PortSettings	m_originalSettings
State	m_state

---

Detailed Description

encapsulate a serial communication port.

Todo:

present some usage samples here...

make this thread safe

---

Member Enumeration Documentation

enum lfc::SerialPort::State

the states in which a SerialPort can be. Enumeration values: stOpen  stClosed

enum lfc::SerialPort::PurgeFlags

purge buffer flags. Enumeration values: purgeInput  purgeOutput

enum lfc::SerialPort::ModemStatusFlags

modem status flags. Enumeration values: mstatusDSR  mstatusCTS  mstatusDCD  mstatusRNG

---

Constructor & Destructor Documentation

lfc::SerialPort::SerialPort (    )  throw ()

construct an closed serial port object.

lfc::SerialPort::SerialPort (  string    name )

construct an opened serial port object.

lfc::SerialPort::~SerialPort (    )  throw () [virtual]

close serial port if open

---

Member Function Documentation

char lfc::SerialPort::pop (    )  [virtual]

Returns: the char that was read from serial port See also: read Reimplemented from lfc::_Input.

void lfc::SerialPort::resetInput (    )  [virtual]

purge input buffer content Reimplemented from lfc::_Input.

bool lfc::SerialPort::hasMore (    )  const [virtual]

Returns: allways true Reimplemented from lfc::_Input.

long lfc::SerialPort::read (  char *    buffer, long    count, bool    bWaitAll = true )  [virtual]

Parameters: buffer  will receive read bytes count  the requested number of bytes (might return less bytes if bWaitAll is false) em bWaitAll if true will try to read exactly count bytes (or throw an exception if fail) Returns: the number of bytes actually read

void lfc::SerialPort::push (  const char &    value )  [virtual]

Parameters: value  the byte to be written See also: write

void lfc::SerialPort::resetOutput (    )  [virtual]

purge output buffer contents Reimplemented from lfc::_Output.

bool lfc::SerialPort::acceptMore (    )  const [virtual]

Returns: allways true Reimplemented from lfc::_Output.

void lfc::SerialPort::flush (    )  [virtual]

Reimplemented from lfc::_Output.

long lfc::SerialPort::write (  const char *    buffer, long    count, bool    bWaitAll = true )  [virtual]

Parameters: buffer  with bytes to be written count  the requested number of bytes (might write fewer bytes if bWaitAll is false) em bWaitAll if true will try to write exactly count bytes (or throw an exception if fail) Returns: the number of bytes actually written

void lfc::SerialPort::open (  string    name )  [virtual]

open serial port. Parameters: name  serial port name (ex. "com1" under win32, "/dev/ttyS0" under Linux) Note: will save original port settings

void lfc::SerialPort::close (    )  [virtual]

close the port. close serial port (if it's open, else do nothing) Note: will restore original port settings

long lfc::SerialPort::availableCount (    )  const [virtual]

return the number of bytes available in the input buffer.

void lfc::SerialPort::setup (  string    settings )  [virtual]

set serial port settings (baud rate, parity, ...). Parameters: settings  describe port settings in the following format: <baud>, <S> where baud is serial transmition speed B is byte size (4..8) P is parity (n-none, o-odd, e-even, s-space) S is stop bits (1 or 2) Note: settings string is not case sensitive and it can't containt whitespaces

void lfc::SerialPort::setHardwareFlowControl (  bool    bEnable )  [virtual]

enable/disable hardware flow control (CTS/RTS). Parameters: bEnable  if true enable hardware flow control, else disable

void lfc::SerialPort::setSoftwareFlowControl (  bool    bEnable, char    Xon = 0x11, char    Xoff = 0x13 )  [virtual]

enable/disable software flow control (XON/XOFF). Parameters: bEnable  if true enable software flow control, else disable Xon  XON character Xoff  XOFF character

void lfc::SerialPort::setReadTimeout (  long    timeout )  [virtual]

set input timeouts. Parameters: timeout  time (in ms) to wait until a char is received

void lfc::SerialPort::setBlockingRead (  bool    bBlocking )  [virtual]

enable/disable blocking read.

void lfc::SerialPort::sendBreak (    )  [virtual]

send a 500ms break.

DWord lfc::SerialPort::modemStatus (    )  const [virtual]

return modem status bits. Returns: modem status bits, as a bitwise combination of the following: mstatusCTS - clear to send mstatusDSR - data set ready mstatusRNG - ring mstatusDCD - data carrier detect

void lfc::SerialPort::setDTR (  bool    bEnable )  [virtual]

enable/disable DTR.

void lfc::SerialPort::setRTS (  bool    bEnable )  [virtual]

enable/disable RTS.

virtual State lfc::SerialPort::state (    )  const throw () [inline, virtual]

return current SerialPort state.

virtual void lfc::SerialPort::testState (  string    location, int    s1, int    s2 = -1, int    s3 = -1, int    s4 = -1 )  const [inline, protected, virtual]

---

Member Data Documentation

pal::serial::Handle lfc::SerialPort::m_handle [protected]

pal::serial::PortSettings lfc::SerialPort::m_originalSettings [protected]

State lfc::SerialPort::m_state [protected]

---
