lfc::Socket Class Reference

medium level socket type. allows easy communication. More...

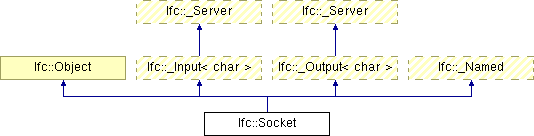

Inheritance diagram for lfc::Socket::

List of all members.

Public Types
enum	State { stOpen, stClosed }
enum	Protocol { pfINET = pal::sockets::pfINET, pfUNIX = pal::sockets::pfUNIX, pfIPX = pal::sockets::pfIPX }
	available communications protocols. More...
enum	SocketType { stStream = pal::sockets::stSTREAM, stDatagram = pal::sockets::stDGRAM }
	connection oriented or connectionless. More...
enum	Flags { flagPeek = pal::sockets::flagPEEK, flagOOB = pal::sockets::flagOOB }
	peek and Out of Band flags. More...
Public Methods
	Socket () throw ()
	creates a Socket but doesn't connect it. More...
	Socket (string host, Word port, SocketType type=stStream)
	creates a Socket and connects it. More...
	Socket (string host, string service, SocketType type=stStream)
	creates a Socket and connects it. More...
	Socket (SocketServer &socketServer)
	creates this Socket from a SocketServer ( as a consequence of the SocketServer accepting a connection ). More...
virtual	~Socket () throw ()
	cleans up. More...
virtual char	pop ()
	see class _Input. More...
virtual bool	hasMore () const
	see class _Input. More...
virtual long	read (char *buffer, long count, bool bWaitAll=true)
	see class _Input. More...
virtual void	push (const char &value)
	see class _Output. More...
virtual long	write (const char *buffer, long count, bool bWaitAll=true)
	see class _Output. More...
virtual void	flush ()
	see class _Output. More...
virtual void	connect (string host, Word port, SocketType type=stStream)
	connects the Socket that calls it. More...
virtual void	connect (string host, string service, SocketType type=stStream)
	connects the Socket that calls it. More...
virtual void	accept (SocketServer &socketServer)
	this is complementary to the SocketServer& constructor. More...
virtual void	close ()
	closes the Socket that calls it Exceptions: SocketException  . More...
virtual long	readFrom (string &host, Word port, char *buffer, long count, bool bWaitAll=true)
	receives some UDP packets. More...
virtual long	writeTo (string host, Word port, const char *buffer, long count, bool bWaitAll=true)
	sends some UDP packets. More...
virtual void	setBlocking (bool bBlocking)
	the operations on this Socket will block or not. More...
virtual State	state () const throw ()
	whether this Socket is open or closed. More...
Protected Methods
virtual void	testState (State state, string location) const
	asserts that the current Socket state is the one we think it is. More...
Protected Attributes
pal::sockets::Handle	m_handle
State	m_state
	current state of the Socket, see Socket::State. More...

---

Detailed Description

medium level socket type. allows easy communication.

Note:

dubious design; these classes will hopefully get replaced soon

Todo:

make this thread safe

---

Member Enumeration Documentation

enum lfc::Socket::State

Enumeration values: stOpen  stClosed

enum lfc::Socket::Protocol

available communications protocols. Enumeration values: pfINET  pfUNIX  pfIPX

enum lfc::Socket::SocketType

connection oriented or connectionless. Enumeration values: stStream  stDatagram

enum lfc::Socket::Flags

peek and Out of Band flags. Enumeration values: flagPeek  flagOOB

---

Constructor & Destructor Documentation

lfc::Socket::Socket (    )  throw ()

creates a Socket but doesn't connect it.

lfc::Socket::Socket (  string    host, Word    port, SocketType    type = stStream )

creates a Socket and connects it. Parameters: host  a string specifying either a hostname or an IP address port  the port to which the Socket is supposed to connect to on host type  Socket::stStream or Socket::stDatagram; connection oriented or connectionless Socket Exceptions: SocketException

lfc::Socket::Socket (  string    host, string    service, SocketType    type = stStream )

creates a Socket and connects it. Parameters: host  a string specifying either a hostname or an IP address service  a service to connect to on host; example of services are tcp, smtp, ftp, ssh, www. type  Socket::stStream or Socket::stDatagram; connection oriented or connectionless Socket Exceptions: SocketException

lfc::Socket::Socket (  SocketServer &    socketServer )

creates this Socket from a SocketServer ( as a consequence of the SocketServer accepting a connection ). Parameters: socketServer  the SocketServer that accepts some connection to produce this Socket Exceptions: SocketException

lfc::Socket::~Socket (    )  throw () [virtual]

cleans up.

---

Member Function Documentation

char lfc::Socket::pop (    )  [virtual]

see class _Input. Reimplemented from lfc::_Input.

bool lfc::Socket::hasMore (    )  const [virtual]

see class _Input. Reimplemented from lfc::_Input.

long lfc::Socket::read (  char *    buffer, long    count, bool    bWaitAll = true )  [virtual]

see class _Input. Todo: support transfer flags

void lfc::Socket::push (  const char &    value )  [virtual]

see class _Output.

long lfc::Socket::write (  const char *    buffer, long    count, bool    bWaitAll = true )  [virtual]

see class _Output. Todo: support transfer flags

void lfc::Socket::flush (    )  [virtual]

see class _Output. Reimplemented from lfc::_Output.

void lfc::Socket::connect (  string    host, Word    port, SocketType    type = stStream )  [virtual]

connects the Socket that calls it. Parameters: host  a string specifying either a hostname or an IP address service  a service to connect to on host; example of services are tcp, smtp, ftp, ssh, www. type  Socket::stStream or Socket::stDatagram; connection oriented or connectionless Socket Exceptions: SocketException

void lfc::Socket::connect (  string    host, string    service, SocketType    type = stStream )  [virtual]

connects the Socket that calls it. Parameters: host  a string specifying either a hostname or an IP address service  a service to connect to on host; example of services are tcp, smtp, ftp, ssh, www. type  Socket::stStream or Socket::stDatagram; connection oriented or connectionless Socket Exceptions: SocketException

void lfc::Socket::accept (  SocketServer &    socketServer )  [virtual]

this is complementary to the SocketServer& constructor. Parameters: socketServer  the SocketServer that accepts some connection to produce this Socket Exceptions: SocketException

void lfc::Socket::close (    )  [virtual]

closes the Socket that calls it Exceptions: SocketException  .

long lfc::Socket::readFrom (  string &    host, Word    port, char *    buffer, long    count, bool    bWaitAll = true )  [virtual]

receives some UDP packets. Parameters: host  the machine that sent the packets port  the peer port to connect to when asking for data buffer  the buffer to read into count  the number of bytes you want to read bWaitAll  blocking until we have all the data or not Returns: the number of bytes actually received Exceptions: SocketException

long lfc::Socket::writeTo (  string    host, Word    port, const char *    buffer, long    count, bool    bWaitAll = true )  [virtual]

sends some UDP packets. Parameters: host  the machine to send to port  the peer port to connect to buffer  the buffer to send from count  the number of bytes you want to send bWaitAll  blocking until we have sent all the data or not Returns: the number of bytes actually sent Exceptions: SocketException

void lfc::Socket::setBlocking (  bool    bBlocking )  [virtual]

the operations on this Socket will block or not. Parameters: bBlocking  true means the Socket blocks, false that it doesn't Exceptions: SocketException

virtual State lfc::Socket::state (    )  const throw () [inline, virtual]

whether this Socket is open or closed.

virtual void lfc::Socket::testState (  State    state, string    location )  const [inline, protected, virtual]

asserts that the current Socket state is the one we think it is. Parameters: state  the state we think the Socket should be in at the time of calling the function location  this is only used if the assertion fails; set it to anything you want to reflect where you were in the program when the assertion failed Exceptions: SocketException

---

Member Data Documentation

pal::sockets::Handle lfc::Socket::m_handle [protected]

State lfc::Socket::m_state [protected]

current state of the Socket, see Socket::State.

---

The documentation for this class was generated from the following files:

• lfc.streams.sockets
• socket.cpp

---
