lfc::Thread Class Reference

high level Thread class used for concurrency issues. More...

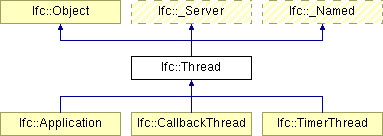

Inheritance diagram for lfc::Thread::

List of all members.

Public Types
enum	State { stCreated, stRunning, stFinished, stInvalid }
enum	Priority { priorityMin = pal::threads::priorityMin, priorityNormal = pal::threads::priorityNormal, priorityMax = pal::threads::priorityMax }
	thread priority. More...
Public Methods
	Thread () throw ()
	creates a Thread. More...
virtual	~Thread () throw ()
virtual void	start ()
	starts the Thread that calls it Exceptions: ThreadException  . More...
virtual void	destroy ()
	kills and destroys the Thread that calls it Exceptions: ThreadException  . More...
virtual void	cancel ()
	schedules this thread for cancellation. More...
virtual int	join () const
	puts this thread on hold and waits for the other threads to finish execution. More...
virtual void	setPriority (Priority priority)
virtual Priority	priority () const
	the current priority. More...
virtual void	setAutoDelete (bool bAutoDelete)
	sets the auto delete flag. More...
virtual State	state () const throw ()
	the current state of the Thread. More...
Static Public Methods
void	yield ()
	gives up temporarily to allow other threads to run Exceptions: ThreadException  . More...
void	sleep (long miliseconds)
	gives up execution and waits miliseconds before resuming. More...
Thread *	self ()
	returns a pointer to self. More...
void	exit (int exitCode=0)
	exits the program with exitCode returned to the system. More...
void	testCancel (int exitCode=-1)
	checks the cancellation flag and if it's set cancels the Thread. More...
list< Thread *>	threadsSnapshot ()
	returns a list of pointers to Threads still in existence. More...
Protected Methods
virtual void	main ()=0
	the most important method of Thread You must override this method in your class that you derive from Thread. Whatever you put in this method is what gets executed when you call Thread::start(). More...
Static Protected Methods
void	startRoutine (void *arg)
	helper function for starting the thread. More...
Protected Attributes
pal::threads::ThreadHandle	m_handle
Priority	m_priority
volatile State	m_state
volatile bool	m_bCancel
volatile int	m_exitCode
volatile bool	m_bAutoDelete
Mutex	m_mutex
Static Protected Attributes
Mutex	s_globalMutex
CurrentThreadTLS	s_currentThreadTLS
list< Thread *>	s_threadsList

---

Detailed Description

high level Thread class used for concurrency issues.

---

Member Enumeration Documentation

enum lfc::Thread::State

Enumeration values: stCreated  stRunning  stFinished  stInvalid

enum lfc::Thread::Priority

thread priority. Enumeration values: priorityMin  priorityNormal  priorityMax

---

Constructor & Destructor Documentation

lfc::Thread::Thread (    )  throw ()

creates a Thread.

lfc::Thread::~Thread (    )  throw () [virtual]

---

Member Function Documentation

void lfc::Thread::start (    )  [virtual]

starts the Thread that calls it Exceptions: ThreadException  .

void lfc::Thread::destroy (    )  [virtual]

kills and destroys the Thread that calls it Exceptions: ThreadException  .

void lfc::Thread::cancel (    )  [virtual]

schedules this thread for cancellation.

int lfc::Thread::join (    )  const [virtual]

puts this thread on hold and waits for the other threads to finish execution. Returns: exit state Exceptions: ThreadException

void lfc::Thread::setPriority (  Priority    priority )  [virtual]

\bried sets the threads priority Parameters: priority  the priority to set the Thread to Exceptions: ThreadException

virtual Priority lfc::Thread::priority (    )  const [inline, virtual]

the current priority. Returns: the current Thread priority for the Thread that calls it

void lfc::Thread::setAutoDelete (  bool    bAutoDelete )  [virtual]

sets the auto delete flag. Parameters: bAutoDelete  if this is true the Thread deletes the object that got passed to Thread::startRoutine after it's done with it See also: Thread::startRoutine

virtual State lfc::Thread::state (    )  const throw () [inline, virtual]

the current state of the Thread. See also: Thread::State

void lfc::Thread::yield (    )  [static]

gives up temporarily to allow other threads to run Exceptions: ThreadException  .

void lfc::Thread::sleep (  long    miliseconds )  [static]

gives up execution and waits miliseconds before resuming.

Thread * lfc::Thread::self (    )  [static]

returns a pointer to self. See also: Thread::CurrentThreadTLS

void lfc::Thread::exit (  int    exitCode = 0 )  [static]

exits the program with exitCode returned to the system.

void lfc::Thread::testCancel (  int    exitCode = -1 )  [static]

checks the cancellation flag and if it's set cancels the Thread.

list< Thread *> lfc::Thread::threadsSnapshot (    )  [static]

returns a list of pointers to Threads still in existence.

virtual void lfc::Thread::main (    )  [protected, pure virtual]

the most important method of Thread You must override this method in your class that you derive from Thread. Whatever you put in this method is what gets executed when you call Thread::start(). Reimplemented in lfc::CallbackThread, and lfc::TimerThread.

void lfc::Thread::startRoutine (  void *    arg )  [static, protected]

helper function for starting the thread.

---

Member Data Documentation

pal::threads::ThreadHandle lfc::Thread::m_handle [protected]

Priority lfc::Thread::m_priority [protected]

volatile State lfc::Thread::m_state [protected]

volatile bool lfc::Thread::m_bCancel [protected]

volatile int lfc::Thread::m_exitCode [protected]

volatile bool lfc::Thread::m_bAutoDelete [protected]

Mutex lfc::Thread::m_mutex [protected]

Mutex lfc::Thread::s_globalMutex [static, protected]

Thread::CurrentThreadTLS lfc::Thread::s_currentThreadTLS [static, protected]

list< Thread *> lfc::Thread::s_threadsList [static, protected]

---

The documentation for this class was generated from the following files:

• lfc.threads.thread
• thread.cpp

---
